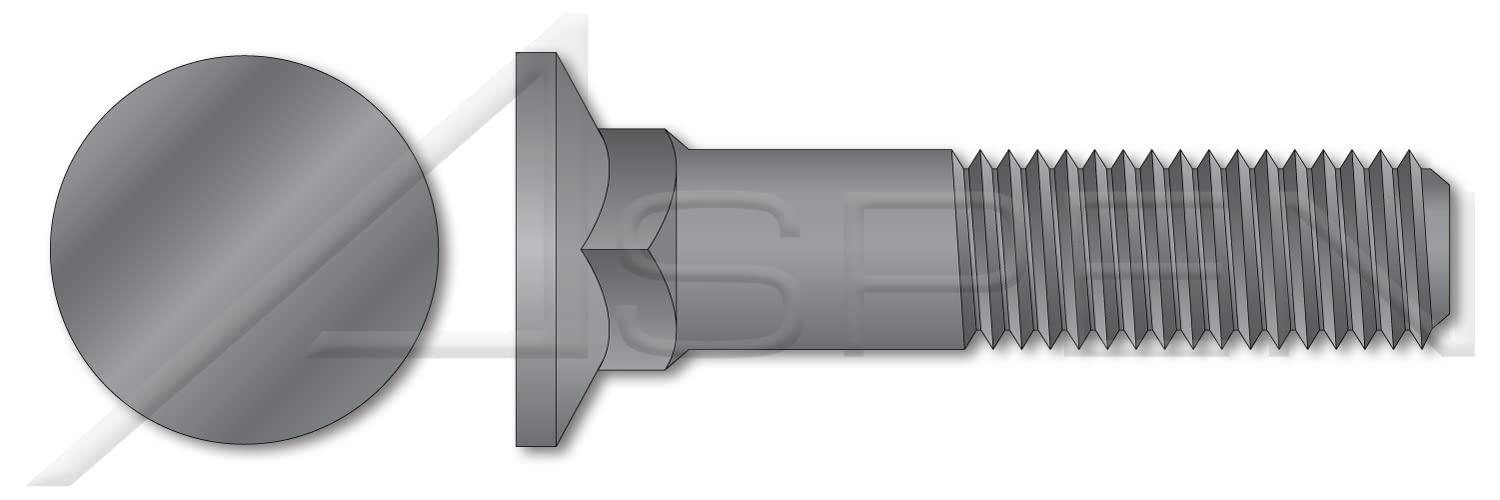

(200 pcs) M8-1.25 X 40mm, DIN 605, Metric, Carriage Bolts, Flat Head, Square Neck, Class 4.6 Steel

DIMENSIONAL ATTRIBUTES | Diameter (Nominal): M8 | Thread Pitch: 1.25 | Diameter (Dimension): 8mm | Diameter (Minimum): 7.42mm | Diameter (Maximum): 8mm | Length (Nominal): 40mm | Thread Length (Nominal): 22mm | Neck Width: 8.58mm | Head Diameter (Minimum): 19.35mm | Head Diameter (Maximum): 20.65mm | Head Height, Overall (Minimum): 8.55mm | Head Height, Overall (Maximum): 9.45mm | PRODUCT ATTRIBUTES | Category: Carriage Bolts | System of Measurement: Metric | Brand: Aspen Fasteners | Head Style: Flat Head | Head Style Detail: Square Neck | Thread Length: Standard Thread Length | Thread Direction: Right-Hand Thread | Material: Steel | Material Grade: Class 4.6 Steel | Coating: Uncoated | Origin: Origin Undefined | Standards and Specifications: DIN 605 | NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

• Exterior Finish : Unfinished
• Grade Rating : Class 4.6
• Item Hardness : class 4.6
• Manufacturer Grade : Class 4.6
• Screw Head Style : Flat
• Thread Size : m8-1.25
• Thread Style : Right Hand
• Thread Type : Metric

Item details

• ASIN : B0B86RTV14
• Brand : ASPEN FASTENERS
• Item Weight : 10.6 Pounds
• Manufacturer : Aspen Fasteners
• Number Of Items : 1
• Part Number : ME107-8125X40-000200
• UPC : 698435943391
• Unit Count : 200.0 Count

Materials & Care

• Exterior Finish : Unfinished
• Material Type : Low Carbon Steel

Measurements

• Item Dimensions : 1.57 x 0.31 x 1.57 inches
• Item Weight : 10.6 Pounds
• Size Name : M8-1.25 X 40mm
• Thread Coverage : Standard Thread Length
• Thread Size : m8-1.25
