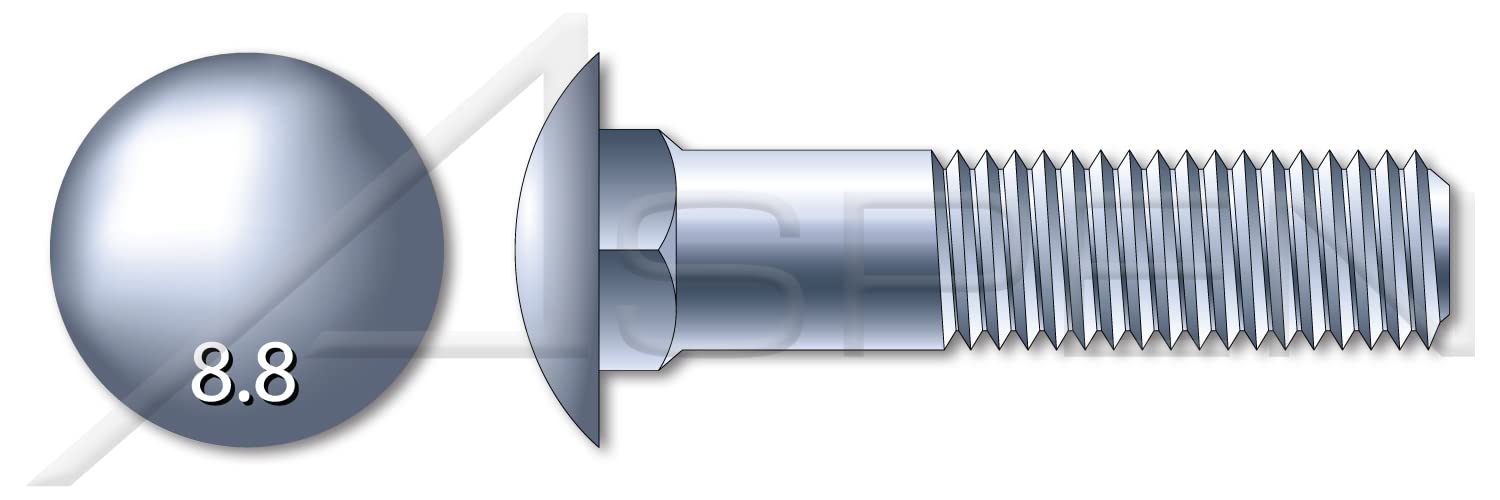

Name: (1400 pcs) M10-1.5 X 25mm, DIN 603 / ISO 8677, Metric, Carriage Bolts, Round Head, Square Neck, Class 8.8 Steel, Zinc Plated
Brand: ASPEN FASTENERS
SKU: AT260824SUHHGCW5
Price: 209.91 USD
Availability: InStock

(1400 pcs) M10-1.5 X 25mm, DIN 603 / ISO 8677, Metric, Carriage Bolts, Round Head, Square Neck, Class 8.8 Steel, Zinc Plated

$209.91 $529.35

Also known as coach bolts, are typically used to fasten metal to wood. The square neck under the head locks the bolt into place. Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa). Can be used as a security fastener. The smooth head prevents unfastening from the head side.DIMENSIONAL ATTRIBUTES Diameter (Nominal): M10 Thread Pitch: 1.5 Diameter (Dimension): 10mm Diameter (Minimum): 9.42mm Diameter (Maximum): 10mm Length (Nominal): 25mm Thread Length (Nominal): 18.4mm Neck Width: 10.58mm Neck Height: 6.6mm Head Diameter (Minimum): 23.35mm Head Diameter (Maximum): 24.65mm Head Height, Overall (Minimum): 4.62mm Head Height, Overall (Maximum): 5.38mmPRODUCT ATTRIBUTES Category: Carriage Bolts System of Measurement: Metric Brand: Aspen Fasteners Head Style: Round Head Head Style Detail: Square Neck Head Markings: Material Grade Mark '8.8' Thread Length: Standard Thread Length Thread Direction: Right-Hand Thread Material: Steel Material Grade: Class 8.8 Steel Coating: Zinc Plated Coating Color: Clear Origin: Origin Undefined Standards and Specifications: DIN 603 / ISO 8677
