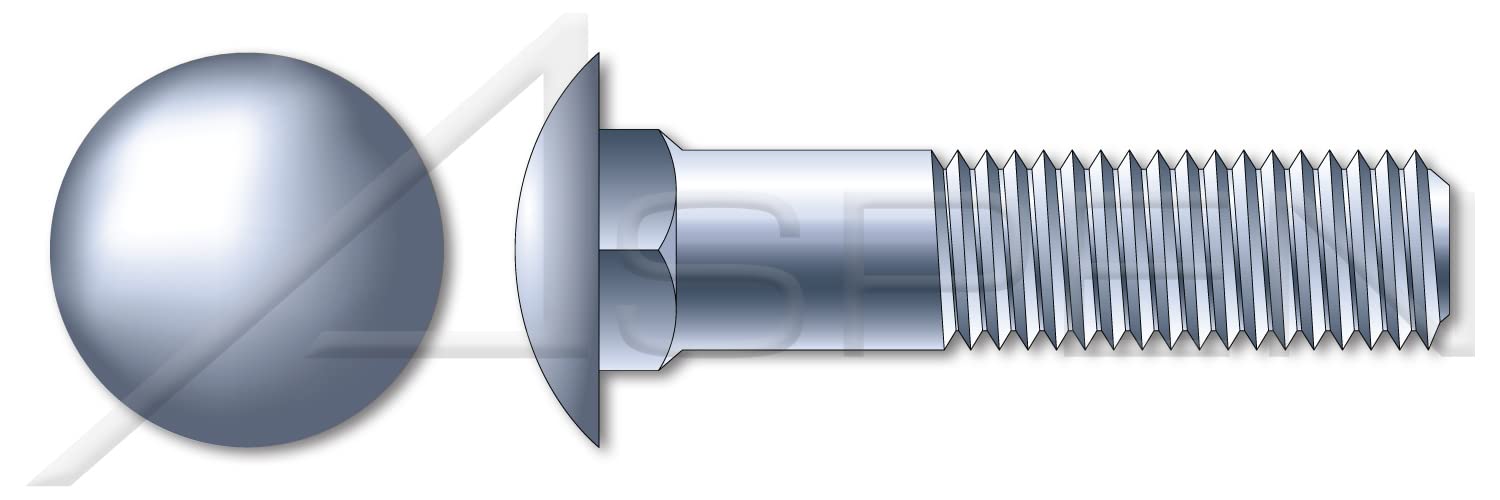

(400 pcs) M10-1.5 X 60mm, DIN 603 / ISO 8677, Metric, Carriage Bolts, Round Head, Square Neck, Class 4.6 Steel, Zinc

DIMENSIONAL ATTRIBUTES | Diameter (Nominal): M10 | Thread Pitch: 1.5 | Diameter (Dimension): 10mm | Diameter (Minimum): 9.42mm | Diameter (Maximum): 10mm | Length (Nominal): 60mm | Thread Length (Nominal): 26mm | Neck Width: 10.58mm | Neck Height: 6.6mm | Head Diameter (Minimum): 23.35mm | Head Diameter (Maximum): 24.65mm | Head Height, Overall (Minimum): 4.62mm | Head Height, Overall (Maximum): 5.38mm | PRODUCT ATTRIBUTES | Category: Carriage Bolts | System of Measurement: Metric | Brand: Aspen Fasteners | Head Style: Round Head | Head Style Detail: Square Neck | Thread Length: Standard Thread Length | Thread Direction: Right-Hand Thread | Material: Steel | Material Grade: Class 4.6 Steel | Coating: Zinc Plated | Coating Color: Clear | Origin: Origin Undefined | Standards and Specifications: DIN 603 / ISO 8677 | NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

• Exterior Finish : Zinc
• Grade Rating : Class 4.6
• Item Hardness : class 4.6
• Manufacturer Grade : Class 4.6
• Screw Head Style : Round
• Thread Size : m10-1.5
• Thread Style : Right Hand
• Thread Type : Metric

Item details

• ASIN : B0B86RPJJ1
• Brand : ASPEN FASTENERS
• Item Weight : 39.7 Pounds
• Manufacturer : Aspen Fasteners
• Number Of Items : 1
• Part Number : ME105-1015X60-000400
• UPC : 698435954175
• Unit Count : 400.0 Count

Materials & Care

• Exterior Finish : Zinc
• Material Type : Low Carbon Steel

Measurements

• Item Dimensions : 2.36 x 0.39 x 2.36 inches
• Item Weight : 39.7 Pounds
• Size Name : M10-1.5 X 60mm
• Thread Coverage : Standard Thread Length
• Thread Size : m10-1.5
