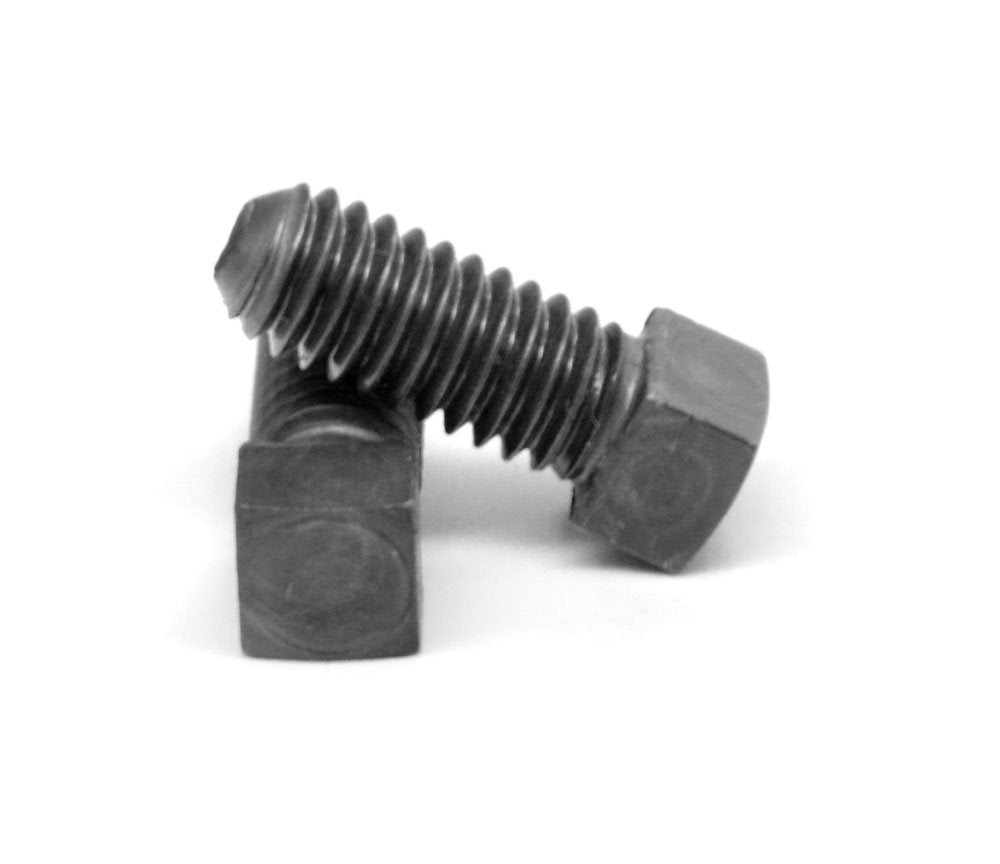

1/4'-20 x 5/8' (FT) Coarse Thread Square Head Set Screw Cup Point Thro

1/4'-20 x 5/8' (FT) Coarse Thread Square Head Set Screw Cup Point Through Hardened Alloy Steel Plain Finish Pk 6000

$447.04 $1,228.92

PRODUCT SPECIFICATIONS

Part #: 0000-108165

Fastener Type: Square Head Set Screw Cup Point Through Hardened
Size Description: 1/4'-20 x 5/8' (FT)
Diameter/Nominal Size: 1/4'
Length: 5/8'
Wrench Size/Across Flats: 0.241-0.250'
Head Height: 0.178-0.196'
Point Diameter: 0.118-0.132'
Thread Pitch: 20
Thread Pitch Type: Coarse
Thread Direction: Right
Thread Coverage: Full
System of Measurement: Inch
Grade: 170 KSI Alloy Steel (Grade 9)
Material: Alloy Steel
Finish: Plain Finish (No Plating)
Head Type: Square
Drive Type: External Square
Point Type: Cup
Average Piece Weight: 0.0088600 lbs.

Square Head Set Screws: Tip pressure prevents objects from moving relative to one another in assemblies where one object is housed inside another. The square head enables wrench tightening and also an easier wrench grip for nut tightening. Used in new construction to mimic an older aesthetic or in railway applications. Set screws come in a variety of different points, cup point being the most common.
