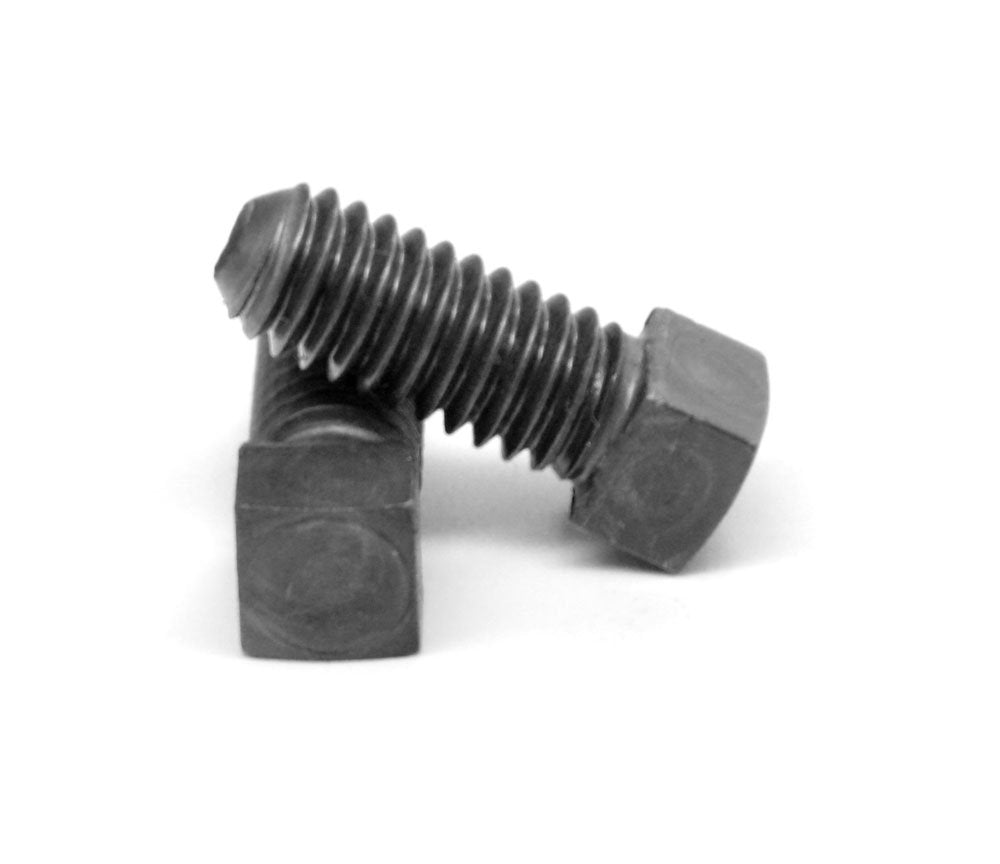

1/4'-20 x 5 (FT) Coarse Thread Square Head Set Screw Cup Point Low Carbon Steel Case Hardened Plain Finish Pk 150

PRODUCT SPECIFICATIONS

Part #: 0000-119795

Fastener Type: Square Head Set Screw Cup Point
Size Description: 1/4'-20 x 5' (FT)
Diameter/Nominal Size: 1/4'
Length: 5'
Wrench Size/Across Flats: 0.241-0.250'
Head Height: 0.178-0.196'
Point Diameter: 0.118-0.132'
Thread Pitch: 20
Thread Pitch Type: Coarse
Thread Direction: Right
Thread Coverage: Full
System of Measurement: Inch
Grade: 2
Material: Low Carbon Steel Case Hardened
Finish: Plain Finish (No Plating)
Head Type: Square
Drive Type: External Square
Point Type: Cup
Average Piece Weight: 0.1000100 lbs.

Square Head Set Screws: Tip pressure prevents objects from moving relative to one another in assemblies where one object is housed inside another. The square head enables wrench tightening and also an easier wrench grip for nut tightening. Used in new construction to mimic an older aesthetic or in railway applications. Set screws come in a variety of different points, cup point being the most common.

Features & Specs

• Drive System : External Square
• Grade Rating : 2
• Screw Head Style : Square
• Screw Point Style : Cupped Point
• Thread Size : 1/4'-20
• Thread Type : Unc

Item details

• ASIN : B0CVFMXN13
• Brand : ASMC Industrial
• Fastener Type : Square Head Set Screw Cup Point
• Item Weight : 1.6 ounces
• Manufacturer : ASMC Industrial
• Number Of Items : 150
• Part Number : 0000-119795

Materials & Care

• Exterior Finish : Plain
• Material Type : Low Carbon Steel Case Hardened

Measurements

• Item Weight : 1.6 ounces
• Size Name : 1/4'-20 x 5' (FT)
• Thread Coverage : Full
• Thread Size : 1/4'-20
