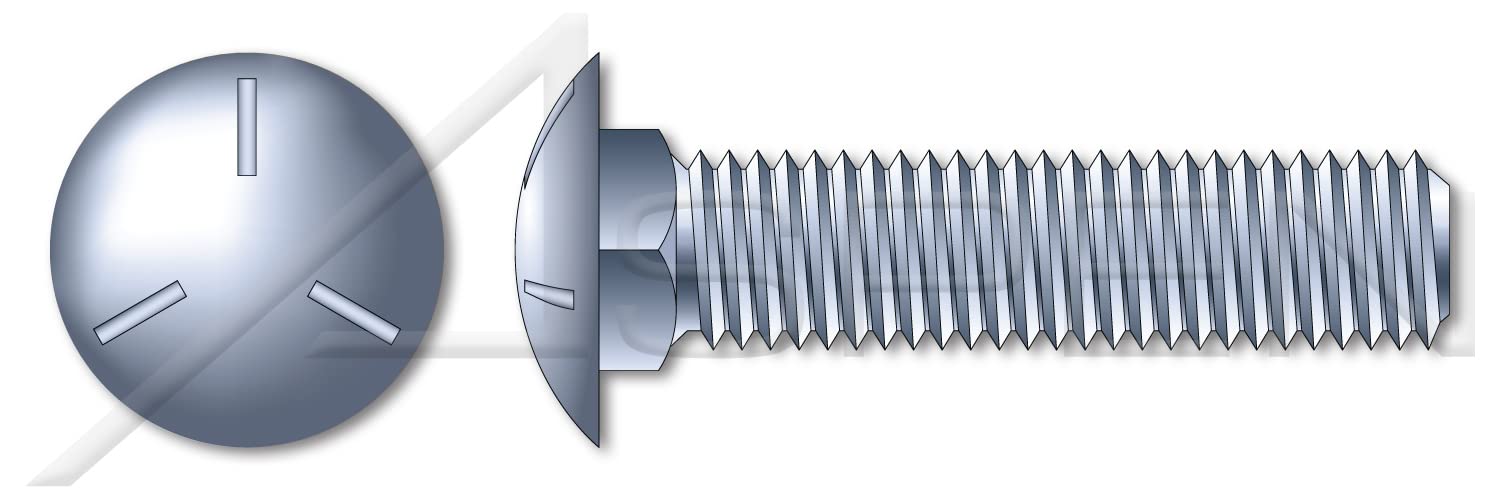

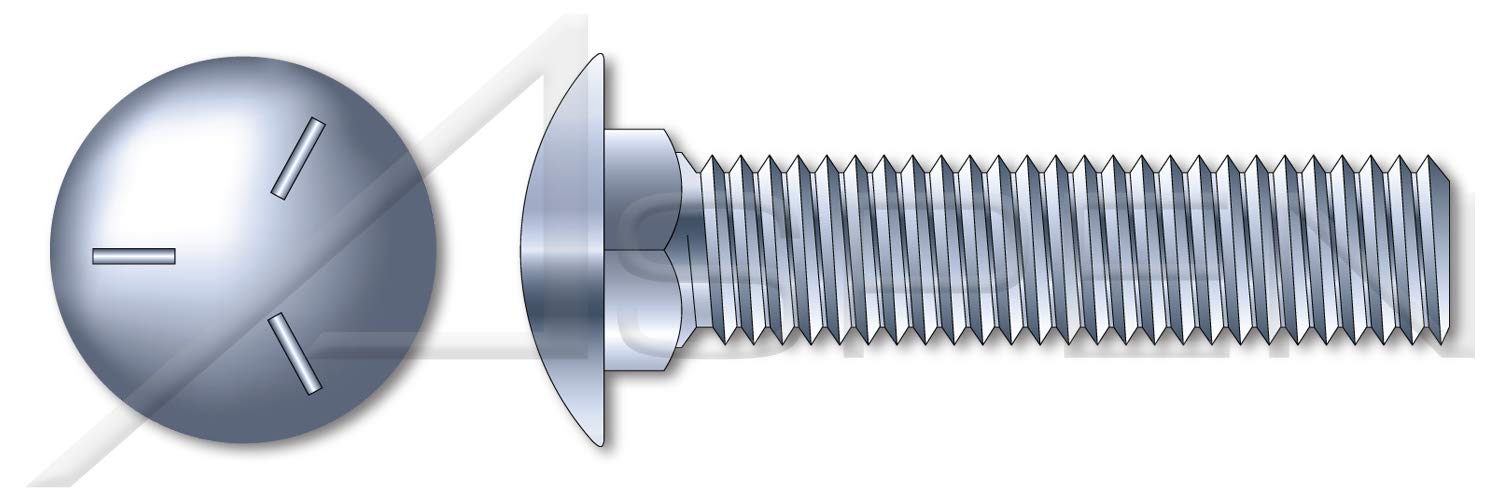

(2500 pcs) 5/16'-18 X 5/8', Carriage Bolts, Round Head, Square Neck, Full Thread, Grade 5 Steel, Zinc

DIMENSIONAL ATTRIBUTES | Diameter (Nominal): 5/16' | Thread Pitch: 18 | Diameter (Dimension): 0.3125' | Diameter (Minimum): 0.298' | Diameter (Maximum): 0.324' | Length (Nominal): 5/8' | Thread Length (Nominal): 0.438' | Neck Width: 0.324' | Neck Height: 0.187' | Head Diameter (Minimum): 0.688' | Head Diameter (Maximum): 0.719' | Head Height, Overall (Minimum): 0.156' | Head Height, Overall (Maximum): 0.176' | PRODUCT ATTRIBUTES | Category: Carriage Bolts | System of Measurement: Inch | Brand: Aspen Fasteners | Head Style: Round Head | Head Style Detail: Square Neck | Head Markings: Three radial lines 120 degrees apart and manufacturer ID | Thread Length: Full Thread | Thread Direction: Right-Hand Thread | Material: Steel | Material Grade: Grade 5 | Coating: Zinc Plated | Coating Color: Clear | Origin: Origin Undefined | Standards and Specifications: ASME B18.5 and SAE J429 | NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

• Exterior Finish : Zinc
• Grade Rating : Grade 5
• Item Hardness : Grade 5
• Manufacturer Grade : Grade 5
• Screw Head Style : Round
• Thread Size : 5/16'-18
• Thread Style : Right Hand

Item details

• ASIN : B016VCHFPS
• Brand : ASPEN FASTENERS
• Item Weight : 58.5 Pounds
• Manufacturer : Aspen Fasteners
• Model : XAMBO004-51618X58-002500
• Number Of Items : 1
• Part Number : XAMBO004-51618X58-002500
• UPC : 698435005204
• Unit Count : 2500.0 Count

Materials & Care

• Exterior Finish : Zinc
• Material Type : Medium Carbon Steel

Measurements

• Item Dimensions : 0.63 x 0.31 x 0.63 inches
• Item Weight : 58.5 Pounds
• Size Name : 5/16'-18 X 5/8'
• Thread Coverage : Fully Threaded
• Thread Size : 5/16'-18
