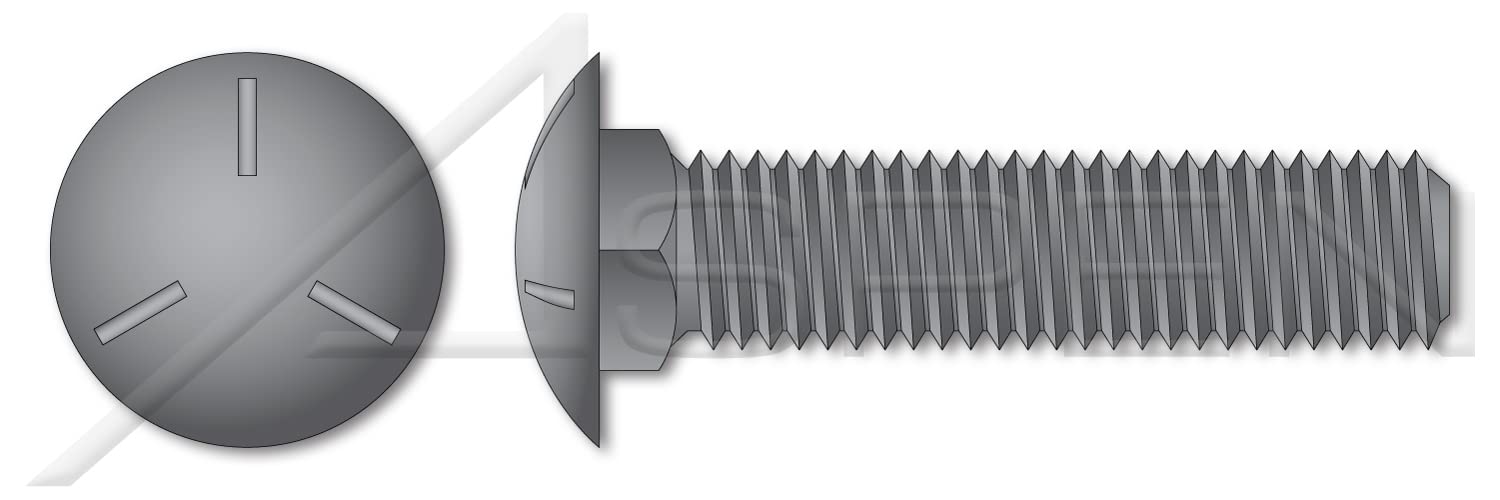

Name: (1550 pcs) 5/16'-18 X 5/8', Carriage Bolts, Round Head, Square Neck, Undersized Body, Full Thread, Grade 5 Steel, Plain
Brand: ASPEN FASTENERS
SKU: XZ2608247ROIPDLG
Price: 327.74 USD
Availability: InStock

(1550 pcs) 5/16'-18 X 5/8', Carriage Bolts, Round Head, Square Neck, Undersized Body, Full Thread, Grade 5 Steel, Plain

$327.74 $836.81

Also known as coach bolts, are typically used to fasten metal to wood. The square neck under the head locks the bolt into place. The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines. Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch. Can be used as a security fastener. The smooth head prevents unfastening from the head side.DIMENSIONAL ATTRIBUTES Diameter (Nominal): 5/16' Thread Pitch: 18 Diameter (Dimension): 0.3125' Diameter (Minimum): 0.298' Diameter (Maximum): 0.324' Length (Nominal): 5/8' Thread Length (Nominal): 0.438' Neck Width: 0.324' Neck Height: 0.187' Head Diameter (Minimum): 0.688' Head Diameter (Maximum): 0.719' Head Height, Overall (Minimum): 0.156' Head Height, Overall (Maximum): 0.176'PRODUCT ATTRIBUTES Category: Carriage Bolts System of Measurement: Inch Brand: Aspen Fasteners Head Style: Round Head Head Style Detail: Square Neck Head Markings: Three radial lines 120 degrees apart and manufacturer ID Body Style: Undersized Body Thread Length: Full Thread Thread Direction: Right-Hand Thread Material: Steel Material Grade: Grade 5 Coating: Uncoated Origin: Origin Undefined Standards and Specifications: ASME B18.5

Features & Specs
