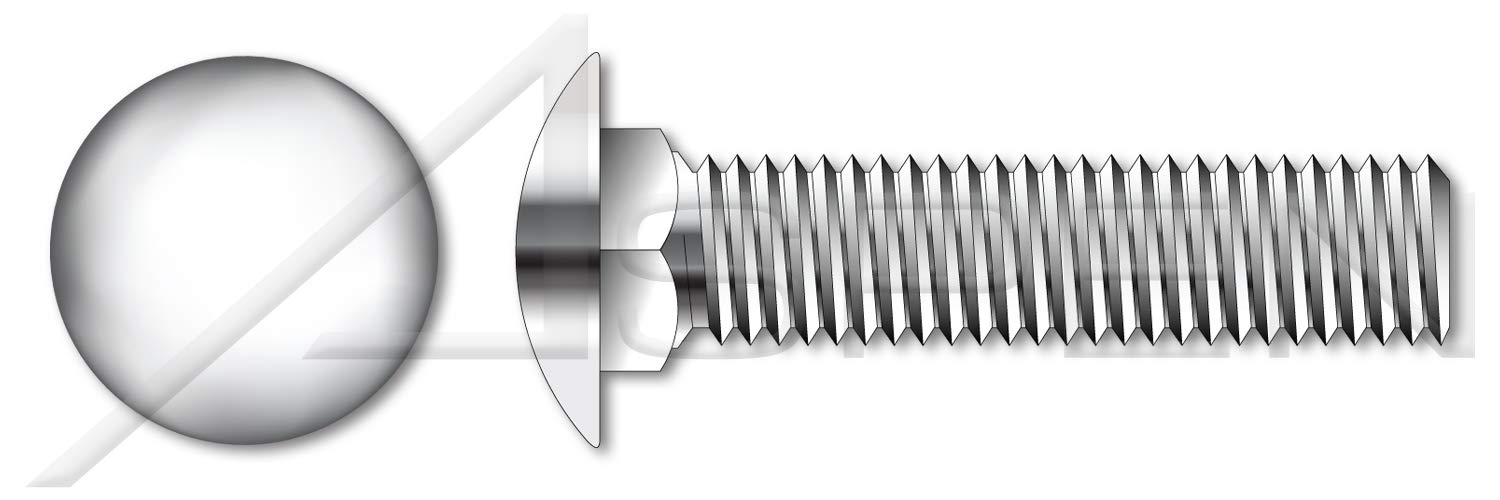

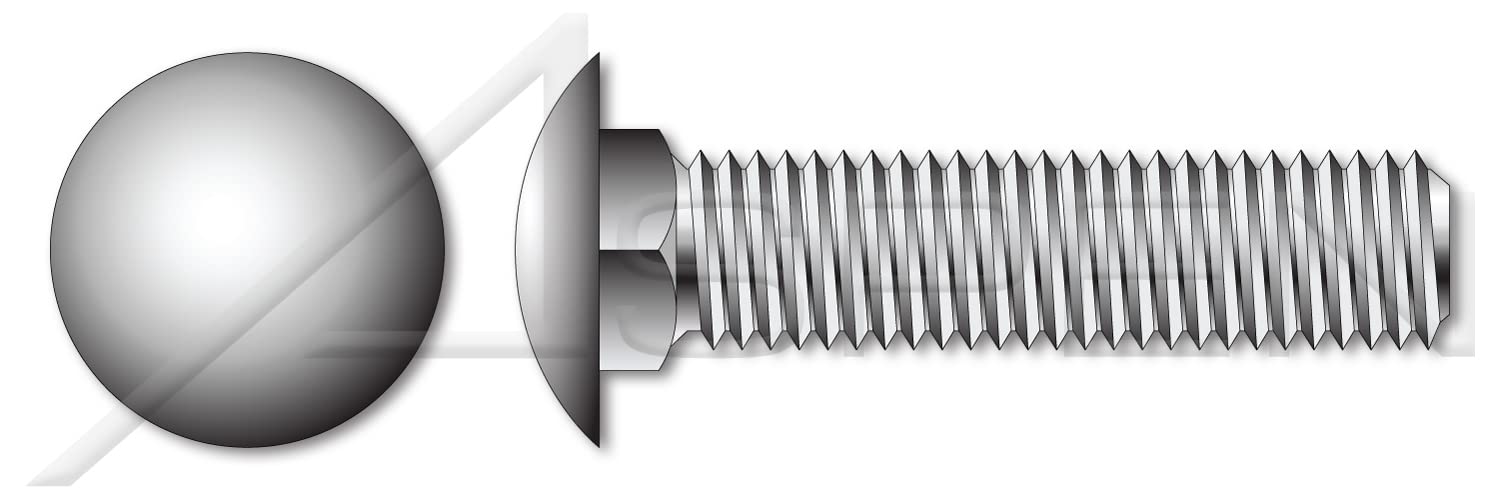

(1000 pcs) 1/4'-20 X 5/8', Carriage Bolts, Round Head, Square Neck, Full Thread, Stainless Steel

DIMENSIONAL ATTRIBUTES | Diameter (Nominal): 1/4' | Thread Pitch: 20 | Diameter (Dimension): 0.25' | Diameter (Minimum): 0.237' | Diameter (Maximum): 0.26' | Length (Nominal): 5/8' | Thread Length (Nominal): 0.469' | Neck Width: 0.26' | Neck Height: 0.156' | Head Diameter (Minimum): 0.563' | Head Diameter (Maximum): 0.594' | Head Height, Overall (Minimum): 0.125' | Head Height, Overall (Maximum): 0.145' | PRODUCT ATTRIBUTES | Category: Carriage Bolts | System of Measurement: Inch | Brand: Aspen Fasteners | Head Style: Round Head | Head Style Detail: Square Neck | Thread Length: Full Thread | Thread Direction: Right-Hand Thread | Material: Stainless Steel | Material Grade: 18-8 Stainless Steel | Coating: Uncoated | Origin: Origin Undefined | Standards and Specifications: ASME B18.5 | NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

• Exterior Finish : Unfinished
• Fastener Type : Carriage Bolt
• Grade Rating : 18-8 Stainless Steel
• Manufacturer Grade : 18-8 Stainless Steel
• Screw Head Style : Round
• Thread Size : 1/4'-20
• Thread Style : Right Hand

Item details

• ASIN : B01AWRF4QU
• Brand : ASPEN FASTENERS
• Fastener Type : Carriage Bolt
• Item Weight : 13.4 Pounds
• Manufacturer : Aspen Fasteners
• Model : AMST001-1420X58-001000
• Number Of Items : 1
• Part Number : AMST001-1420X58-001000
• UPC : 698435542822
• Unit Count : 1000.0 Count

Materials & Care

• Exterior Finish : Unfinished
• Material Type : Stainless Steel

Measurements

• Item Dimensions : 0.63 x 0.25 x 0.63 inches
• Item Weight : 13.4 Pounds
• Size Name : 1/4'-20 X 5/8'
• Thread Coverage : Fully Threaded
• Thread Size : 1/4'-20
