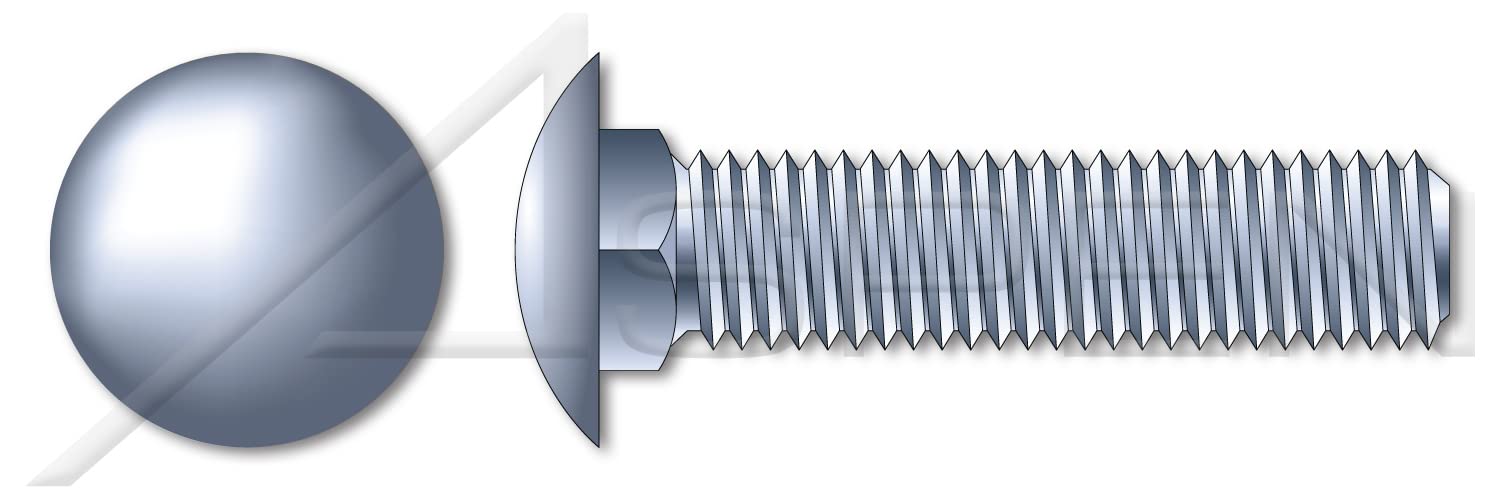

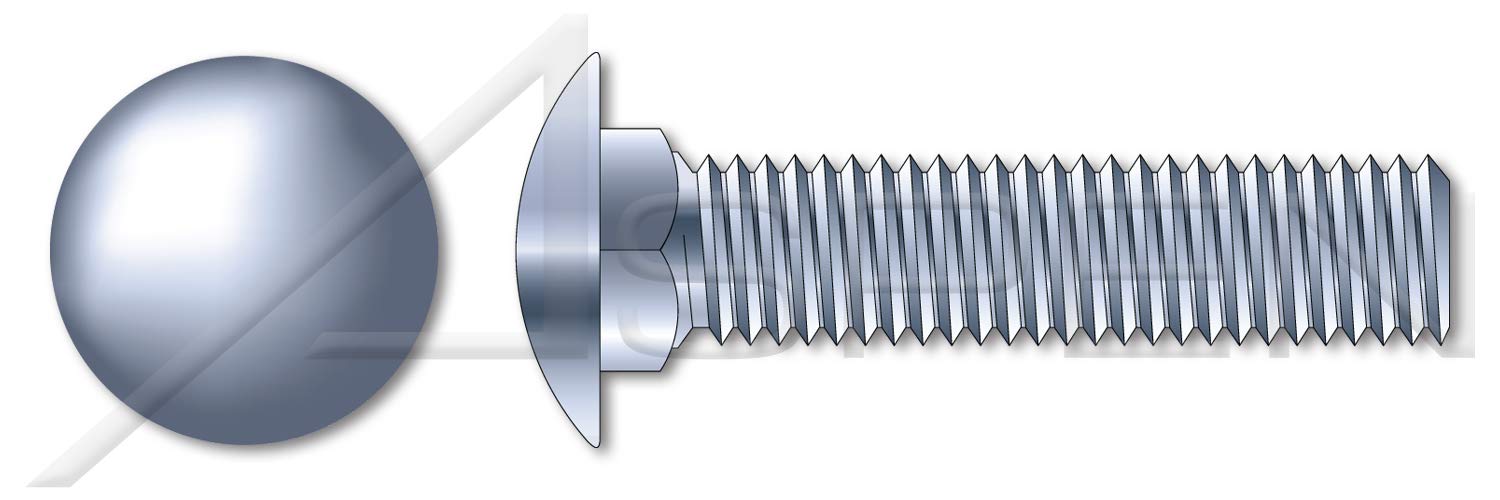

(2000 pcs) 5/16'-18 X 5/8', Carriage Bolts, Round Head, Square Neck, Full Thread, A307 Steel, Zinc

DIMENSIONAL ATTRIBUTES
- Diameter (Nominal): 5/16'
- Thread Pitch: 18
- Diameter (Dimension): 0.3125'
- Diameter (Minimum): 0.298'
- Diameter (Maximum): 0.324'
- Length (Nominal): 5/8'
- Thread Length (Nominal): 0.438'
- Neck Width: 0.324'
- Neck Height: 0.187'
- Head Diameter (Minimum): 0.688'
- Head Diameter (Maximum): 0.719'
- Head Height, Overall (Minimum): 0.156'
- Head Height, Overall (Maximum): 0.176'

PRODUCT ATTRIBUTES
- Category: Carriage Bolts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Round Head
- Head Style Detail: Square Neck
- Head Markings: Material Grade Mark 'A307'
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: A307 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.5

NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

• Exterior Finish : Zinc
• Fastener Type : Carriage Bolt
• Grade Rating : Grade 1
• Manufacturer Grade : Grade 1
• Screw Head Style : Round
• Thread Size : 5/16'-18
• Thread Style : Right Hand

Item details

• ASIN : B016VCR2NS
• Brand : ASPEN FASTENERS
• Fastener Type : Carriage Bolt
• Item Weight : 49.9 Pounds
• Manufacturer : Aspen Fasteners
• Model : XAMBO009-51618X58-002000
• Part Number : XAMBO009-51618X58-002000
• Unit Count : 2000.0 Count

Materials & Care

• Exterior Finish : Zinc
• Material Type : Low Carbon Steel

Measurements

• Item Dimensions : 0.63 x 0.31 x 0.63 inches
• Item Weight : 49.9 Pounds
• Size Name : 5/16'-18 X 5/8'
• Thread Coverage : Fully Threaded
• Thread Size : 5/16'-18
