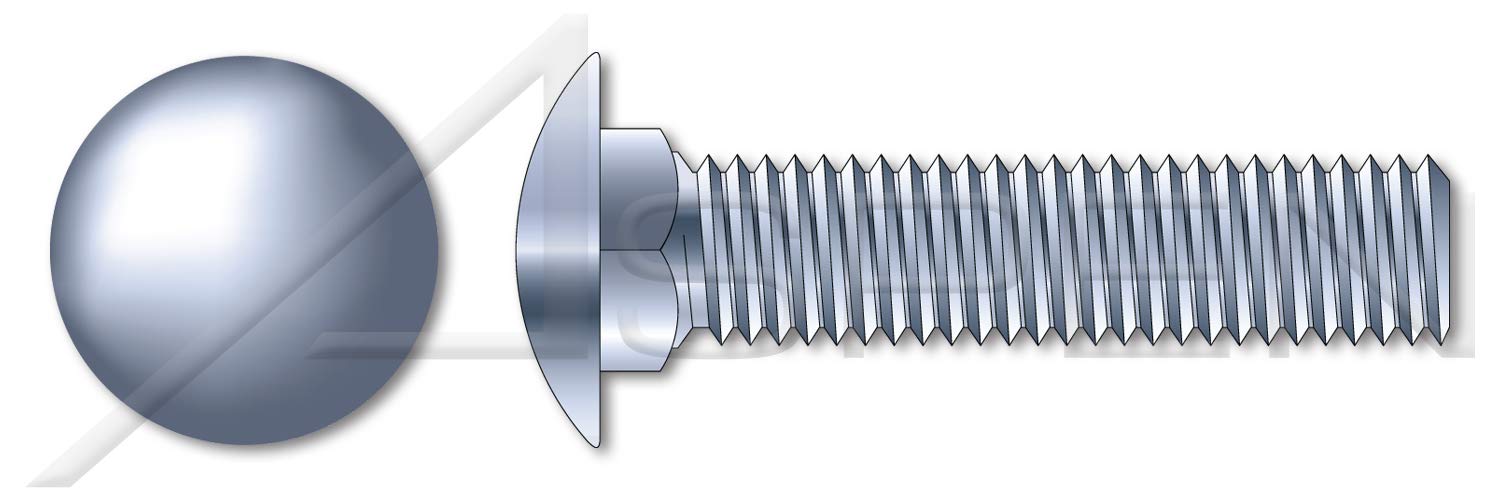

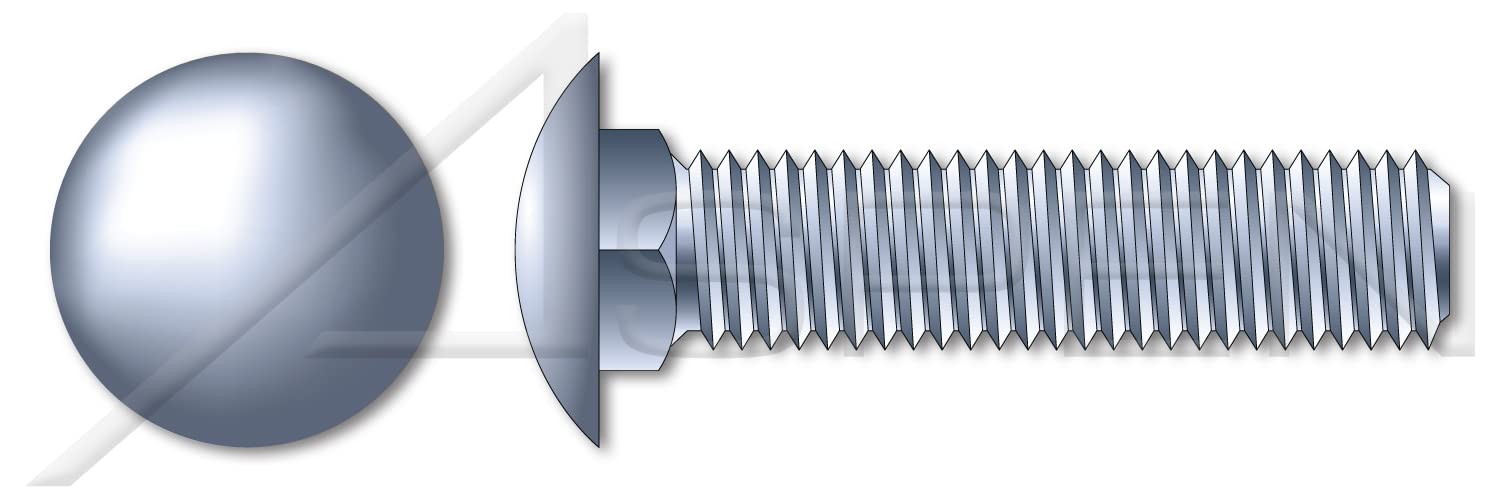

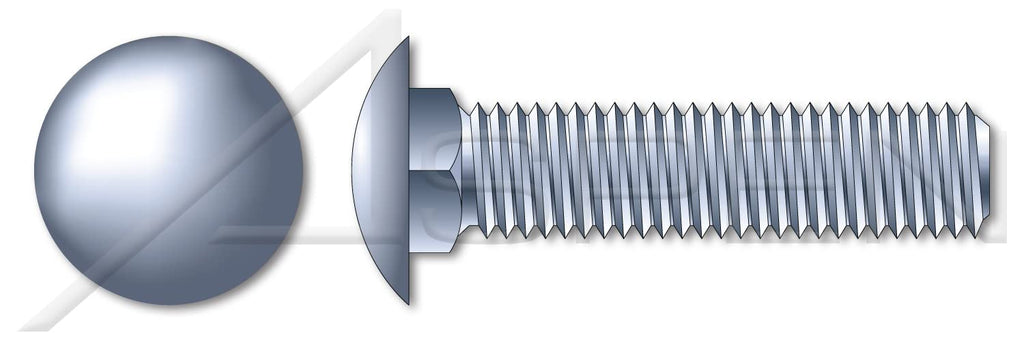

(6000 pcs) #10-24 X 5/8', Carriage Bolts, Round Head, Square Neck, Full Thread, A307 Steel, Zinc

DIMENSIONAL ATTRIBUTES | Diameter (Nominal): #10 | Thread Pitch: 24 | Diameter (Dimension): 0.1875' | Diameter (Minimum): 0.182' | Diameter (Maximum): 0.199' | Length (Nominal): 5/8' | Thread Length (Nominal): 0.5' | Neck Width: 0.199' | Neck Height: 0.125' | Head Diameter (Minimum): 0.436' | Head Diameter (Maximum): 0.469' | Head Height, Overall (Minimum): 0.094' | Head Height, Overall (Maximum): 0.114' | PRODUCT ATTRIBUTES | Category: Carriage Bolts | System of Measurement: Inch | Brand: Aspen Fasteners | Head Style: Round Head | Head Style Detail: Square Neck | Head Markings: Material Grade Mark 'A307' | Thread Length: Full Thread | Thread Direction: Right-Hand Thread | Material: Steel | Material Grade: A307 Steel | Coating: Zinc Plated | Coating Color: Clear | Origin: Origin Undefined | Standards and Specifications: ASME B18.5 | NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

• Exterior Finish : Zinc
• Fastener Type : Carriage Bolt
• Grade Rating : Grade 1
• Manufacturer Grade : Grade 1
• Screw Head Style : Round
• Thread Size : #10-24
• Thread Style : Right Hand

Item details

• ASIN : B01AWQKEX4
• Brand : ASPEN FASTENERS
• Fastener Type : Carriage Bolt
• Item Weight : 41.6 Pounds
• Manufacturer : Aspen Fasteners
• Model : AMBO009-1024X58-006000
• Number Of Items : 1
• Part Number : AMBO009-1024X58-006000
• UPC : 698435010574
• Unit Count : 6000.0 Count

Materials & Care

• Exterior Finish : Zinc
• Material Type : Low Carbon Steel

Measurements

• Item Dimensions : 0.63 x 0.19 x 0.63 inches
• Item Weight : 41.6 Pounds
• Size Name : #10-24 X 5/8'
• Thread Coverage : Fully Threaded
• Thread Size : #10-24
